15年以上リストされた歩行者の回転木戸そして駐車装置製造業者!
標準的なコード:832966
| Place of Origin: | China |
|---|---|
| ブランド名: | DOOR or OEM |
| 証明: | CE / IS09001 |
| Model Number: | DR.TD6621L |
| Minimum Order Quantity: | 1 lane |
| 価格: | negotiable |
| Packaging Details: | Plywood box |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 2500 sets per month |
| Material: | SUS304 brushed stainless steel | Suitable For: | Access Control, Entrance And Exit Control |
|---|---|---|---|
| Turnstile Material: | SUS304 Stainless | Top Cover Material: | SUS304 Stainless |
| Communication Interface: | RS485, dry contact, relay | Power Input: | AC100-240V; 50/60HZ |
| Swing arm available: | Acrylics Or Tempered Glass | Driving Motor: | Servo Motor |
| Opening Signal Input:: | Dry Contact | Working environment: | -25℃-+70℃ |
| Pass speed: | 30-50p/m | Support System: | Face Recognition,ic/id Card,fingerprint |
| Motor: | Servo motor | IR Sensor: | 8 pairs |
| IP Rating: | IP42 | Mean Cycles Between Failure: | 20 million times |
| Voltage: | AC110V/AC220V±10% 50-60Hz | Operating Power: | Single Core 100w, dual core 200w |
| Method of position: | Motor + clutch + encoder | Mtbf: | 10 Million Times |
| Size: | L1600*W160*H990mm | ||
| ハイライト: | SUS304 stainless steel speed gate,servo motor turnstile gate,speed gate turnstile with warranty |
||
| Attribute | Value |
|---|---|
| Material | SUS304 brushed stainless steel |
| Suitable For | Access Control, Entrance And Exit Control |
| Turnstile Material | SUS304 Stainless |
| Top Cover Material | SUS304 Stainless |
| Communication Interface | RS485, dry contact, relay |
| Power Input | AC100-240V; 50/60HZ |
| Swing arm available | Acrylics Or Tempered Glass |
| Driving Motor | Servo Motor |
| Opening Signal Input | Dry Contact |
| Working environment | -25℃-+70℃ |
| Pass speed | 30-50p/m |
| Support System | Face Recognition, IC/ID Card, Fingerprint |
| Motor | Servo motor |
| IR Sensor | 8 pairs |
| IP Rating | IP42 |
| Mean Cycles Between Failure | 20 million times |
| Voltage | AC110V/AC220V±10% 50-60Hz |
| Operating Power | Single Core 100w, dual core 200w |
| Method of position | Motor + clutch + encoder |
| MTBF | 10 Million Times |
| Size | L1600*W160*H990mm |

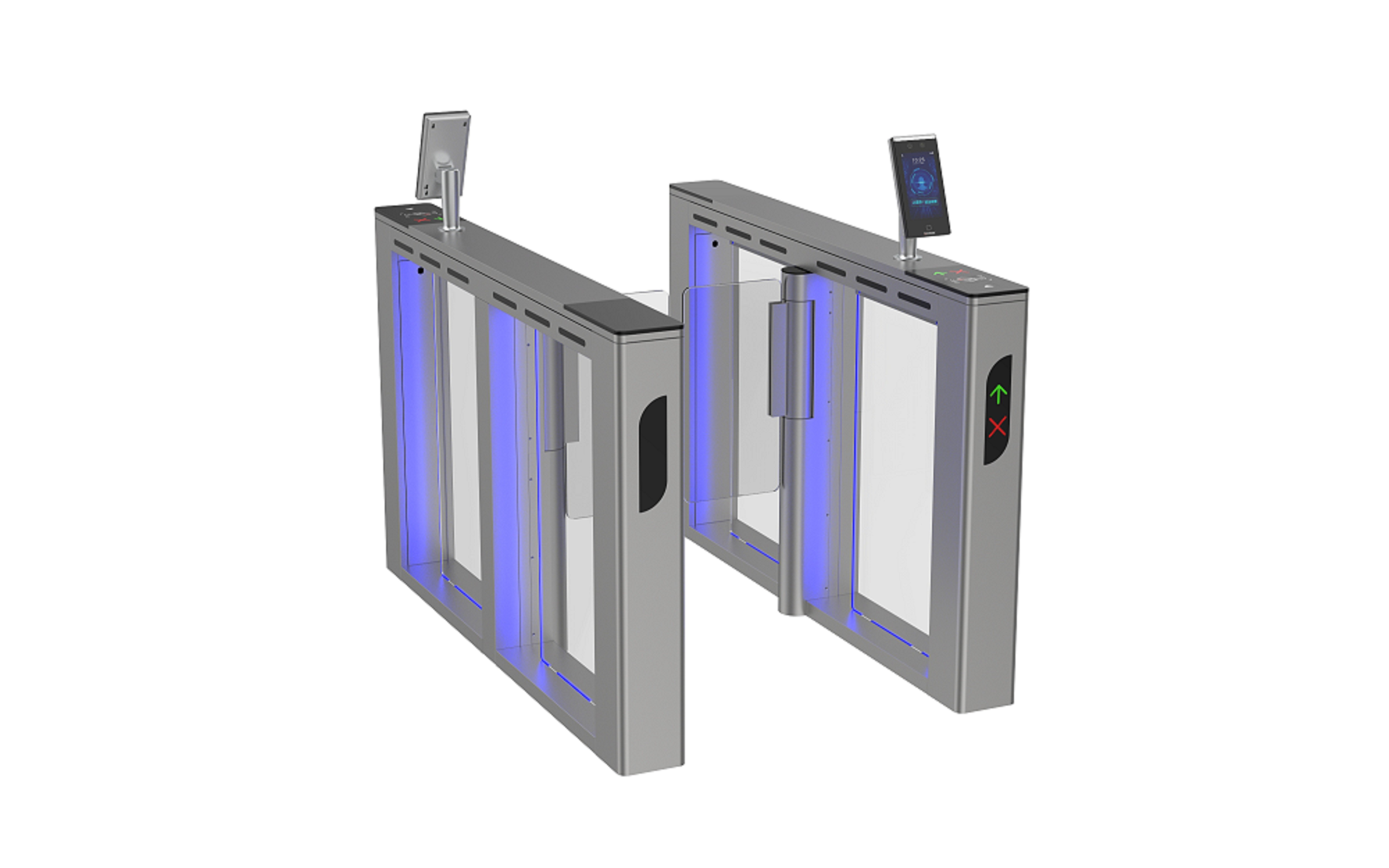

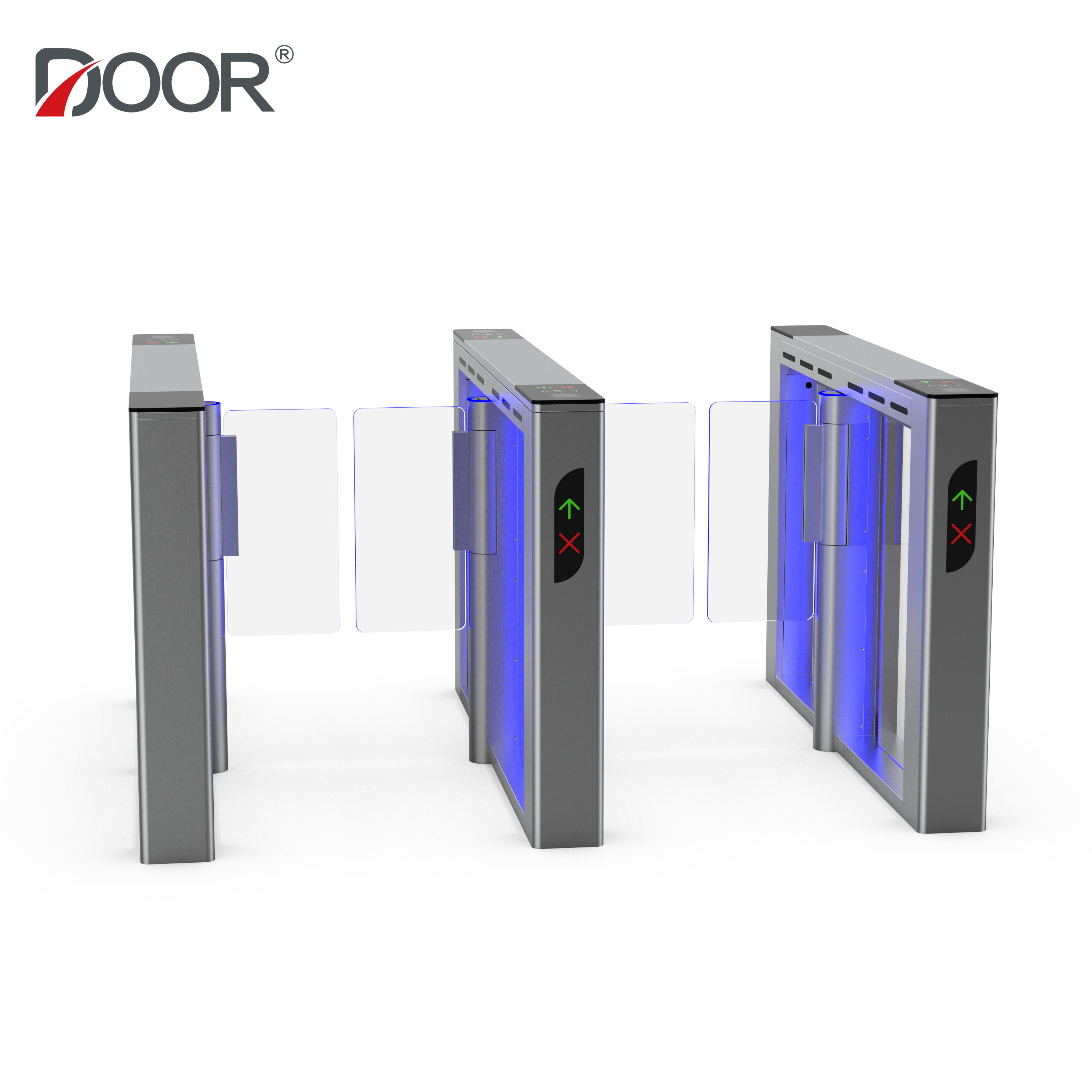

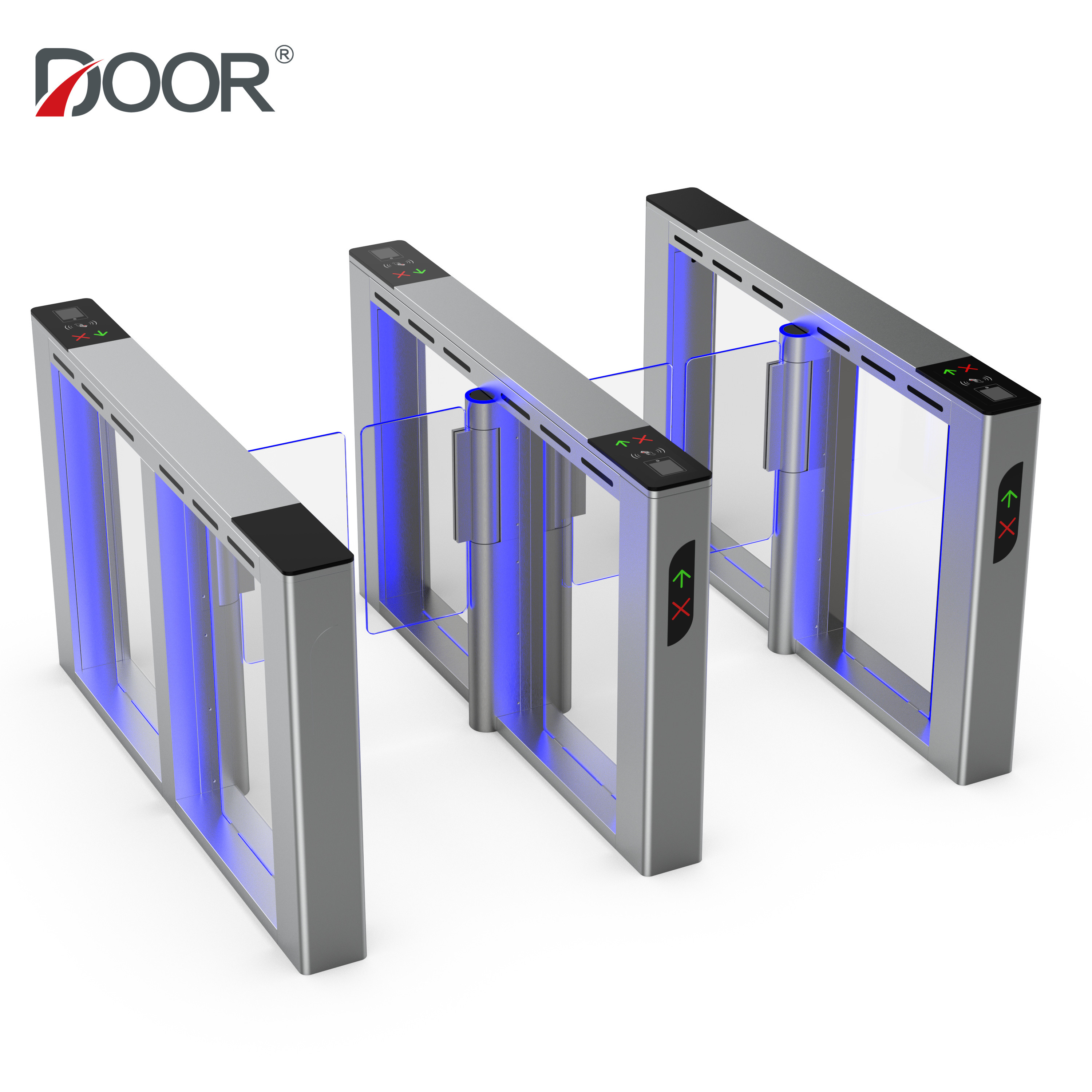

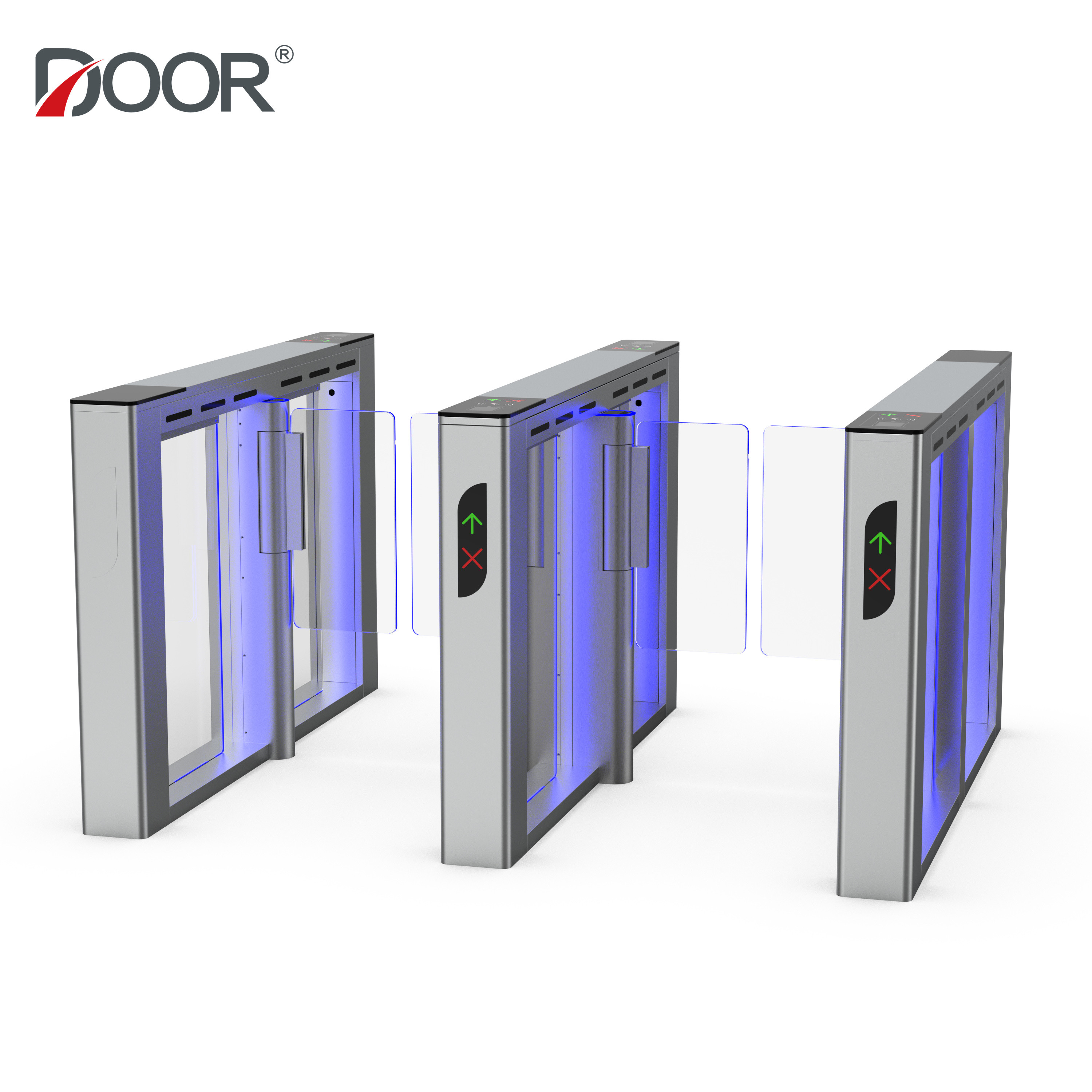

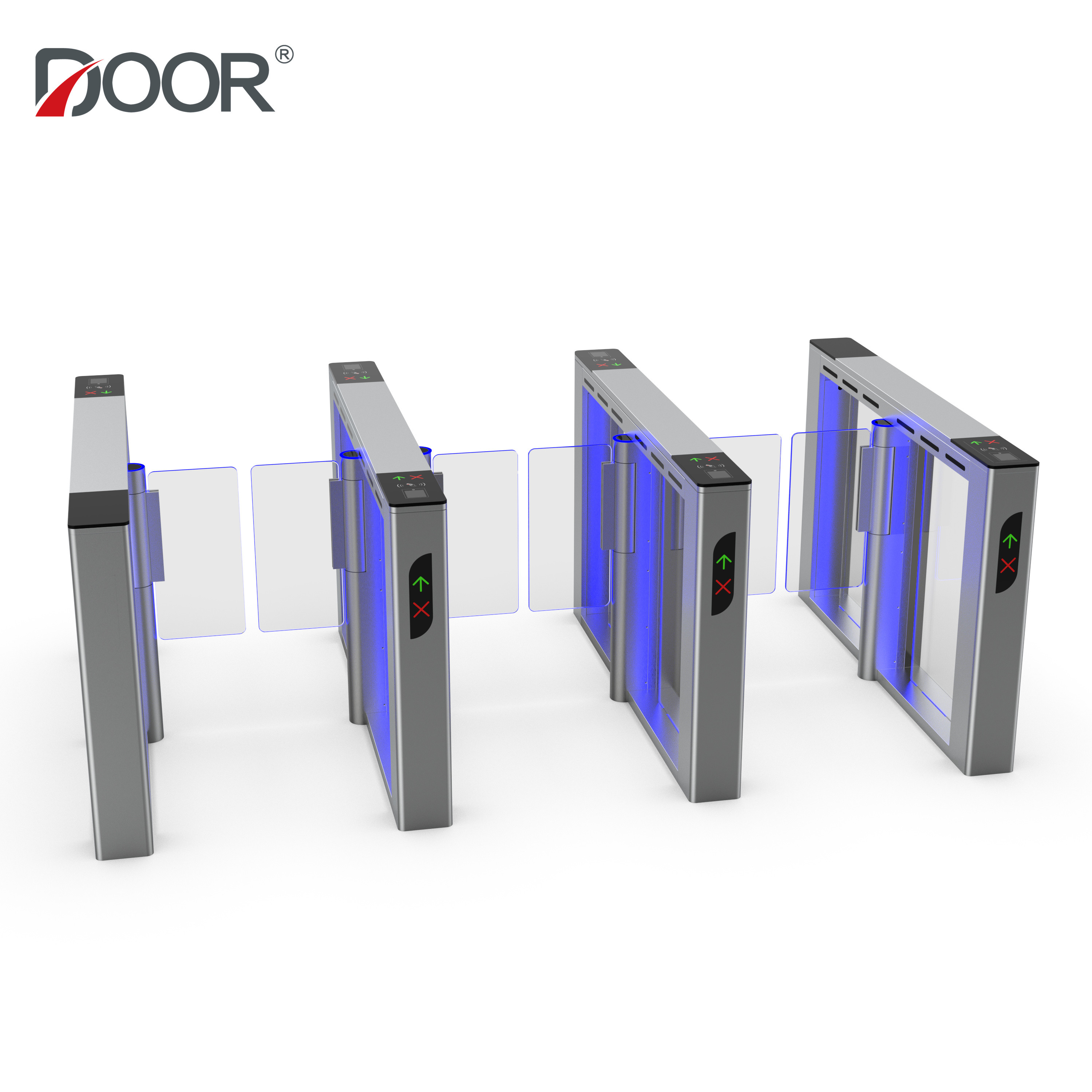

Supermarket Turnstiles Speed Gate with optional face recognition and servo motor person control. Crafted from stainless steel via laser cutting and CNC bending, this speed gate combines sleek aesthetics with precision engineering. Advanced manufacturing and rigorous quality control ensure a durable, minimalist design.
Ideal for office buildings, government facilities, banks, airports, hotels, campuses, and high-end residential areas.
Shipping fee and delivery date to be negotiated. Contact supplier for more details.
