15年以上リストされた歩行者の回転木戸そして駐車装置製造業者!
標準的なコード:832966
| Place of Origin: | China |
|---|---|
| ブランド名: | DOOR or OEM |
| 証明: | CE / IS09001 |
| Model Number: | DR.TD6629A-Black |
| Minimum Order Quantity: | 1 lane |
| 価格: | US $3000-US $3700 |
| Packaging Details: | Plywood box ，L1600×W140×H1000mm |
| Delivery Time: | 2-8 weeks |
| Payment Terms: | T/T |
| Supply Ability: | 2500 sets per month |
| 材料: | SUS304ステンレス鋼 +アルミニウム合金 | 作業環境: | -25℃ - +70℃ |
|---|---|---|---|
| パス速度: | 35-40パーソナル/分 | モーター: | サーボモーター |
| Photocell: | 12ペア | 通過幅: | 標準600mm、最大900mm |
| スイングアームが利用可能: | アクリル | IP評価: | IP42 |
| 障害の間の平均サイクル: | 2000万回 | 電圧: | AC110V/AC220V±10％50-60Hz |
| 動作電力: | シングルコア100W、デュアルコア200W | 位置の方法: | モーター +クラッチ +エンコーダー |
| ハイライト: | high speed swing turnstile gate,RFID QR code access control turnstile,speed gate turnstile with warranty |
||
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

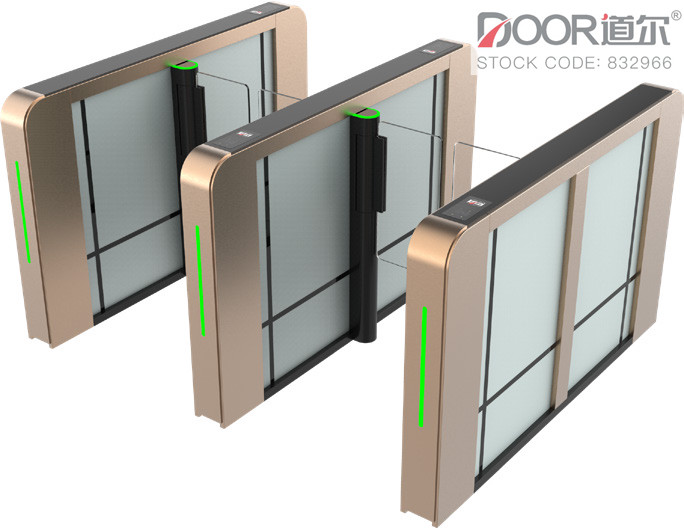

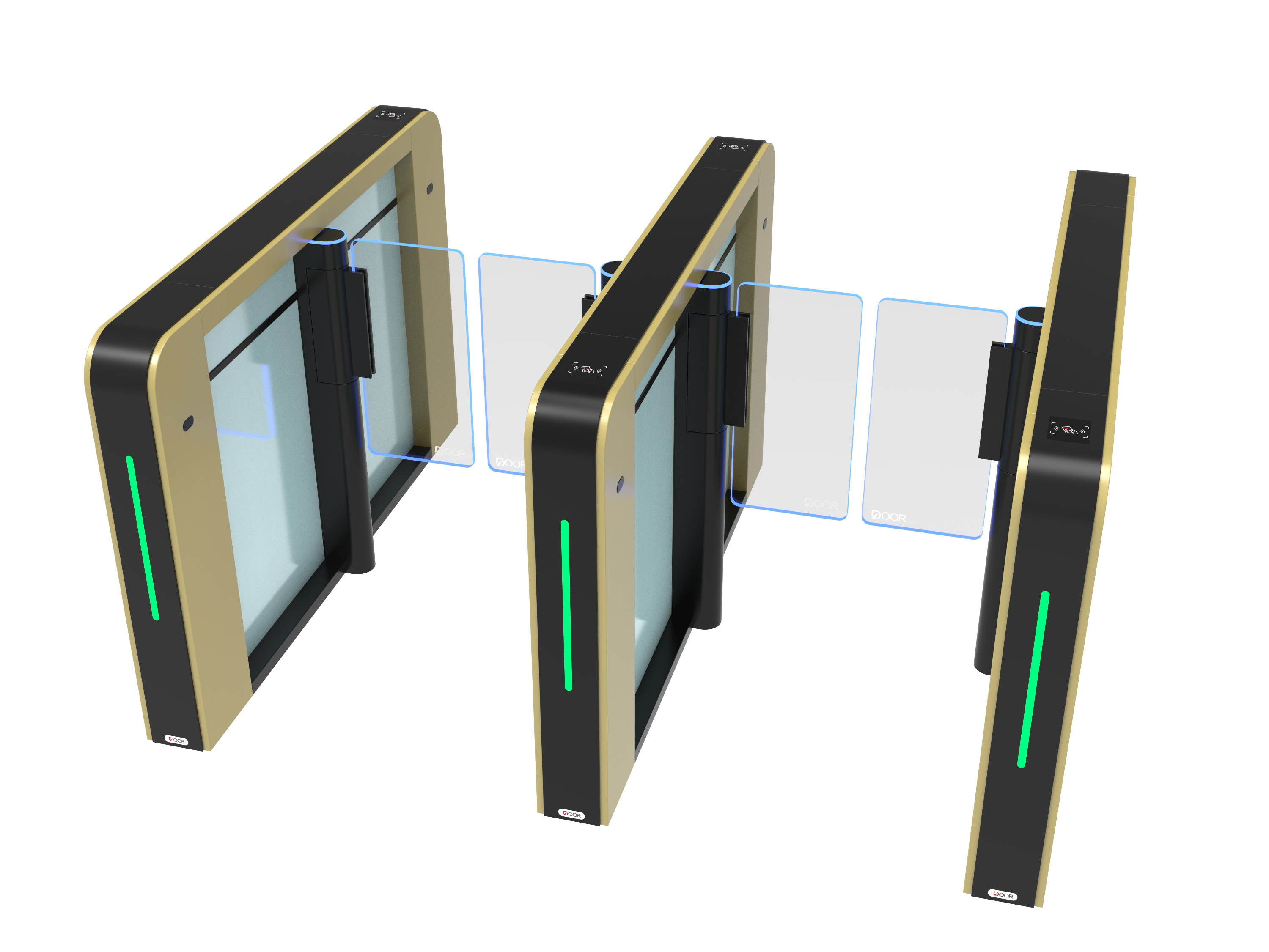

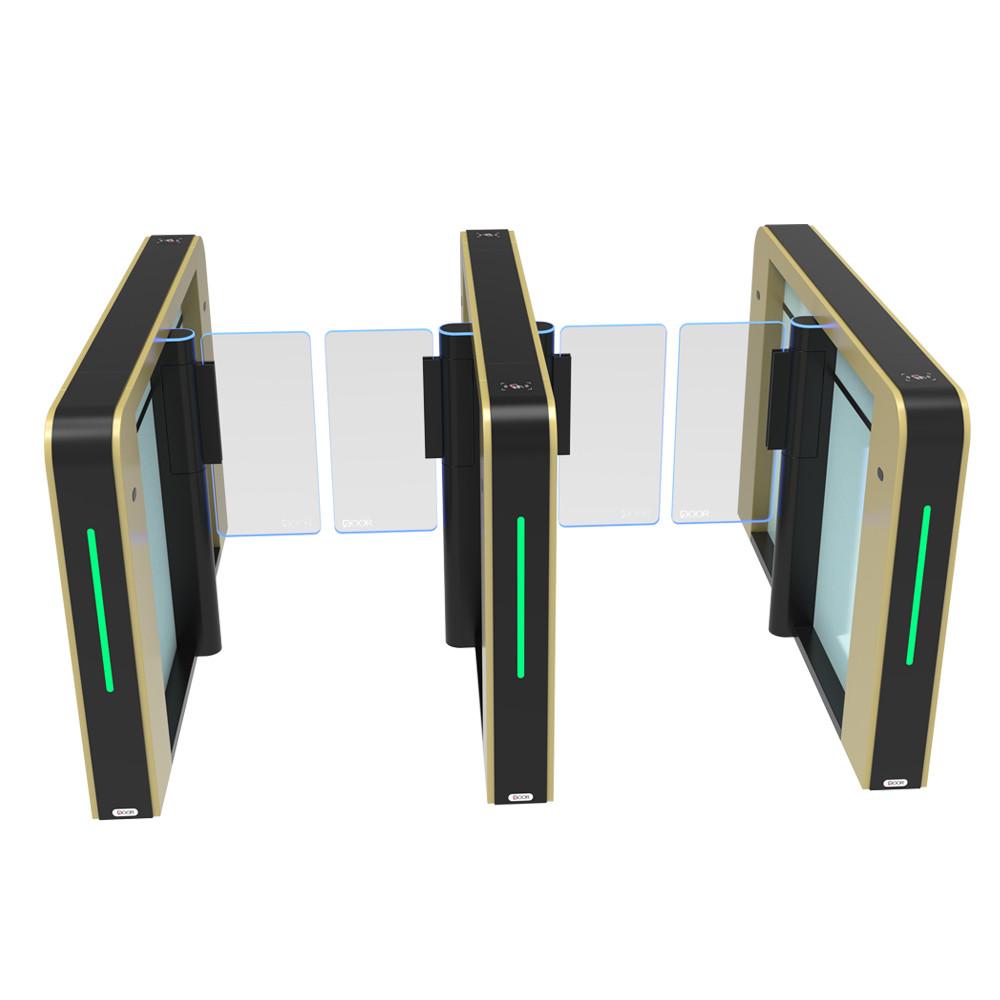

High-End Screwless Fast Speed Turnstile Gate With 0.3S Servo Motor
Discriptions of pedestrian speed gate turnstile
The speed gate top cover is made of aluminum alloy, the body is made of stainless steel and brushed SUS304 thickness 2.0mm, which is matched with elegant champagne gold
The turnstile top cover aluminum alloy surface is anodized after sandblasting. It is bright,delicate and smooth
Traditional mortise and tenon process design, the appearance of the whole machine has no screws and no keyholes.
The new design is Industry new trend that come with hidden infrared design, the infrared are hidden between double tempered glass
The gap between the top cover and side cover of the whole machine and the body without filler is less than 0.2mm, showing the craftsman spirit
The servo motor running come with and self-developed FOC control technology, which can effectively accurately control and locate the moving position and force of the door. Realize the stability and mute control of the door during operation.
Open door time as fast as 0.3 seconds.
Functions
Anti-trailing function:
Multiple sets of infrared beam monitoring can pass one person and one card to personnel,to prevent trailing and alarm prompt.
Anti-reverse:
Precise actuarial calculation,infrared beam monitoring,reverse passage,automatic blockade of channels,voice alarm prompt.
Anti-clip and anti-collision monitoring:
Triple safety protection mechanism to ensure the safe passage of person
A.Infrared anti-clip and anti-collision
B.Passing process logic anti-pinch and anti-collision
C.Current detection anti-clamp and anti-collision
More optional for Speed Gate DRTD6629

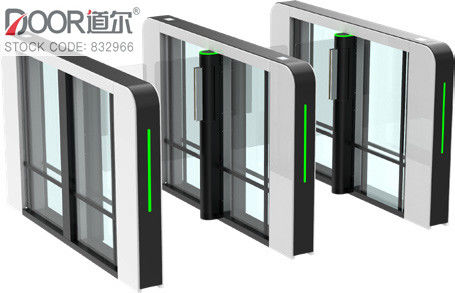

Slim speed gate optional

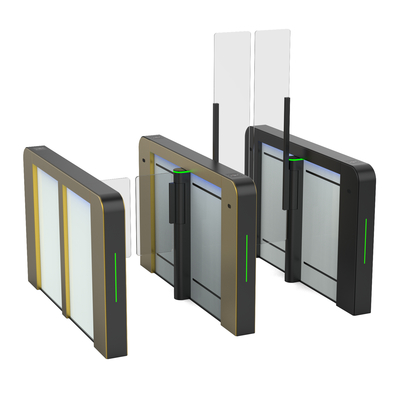

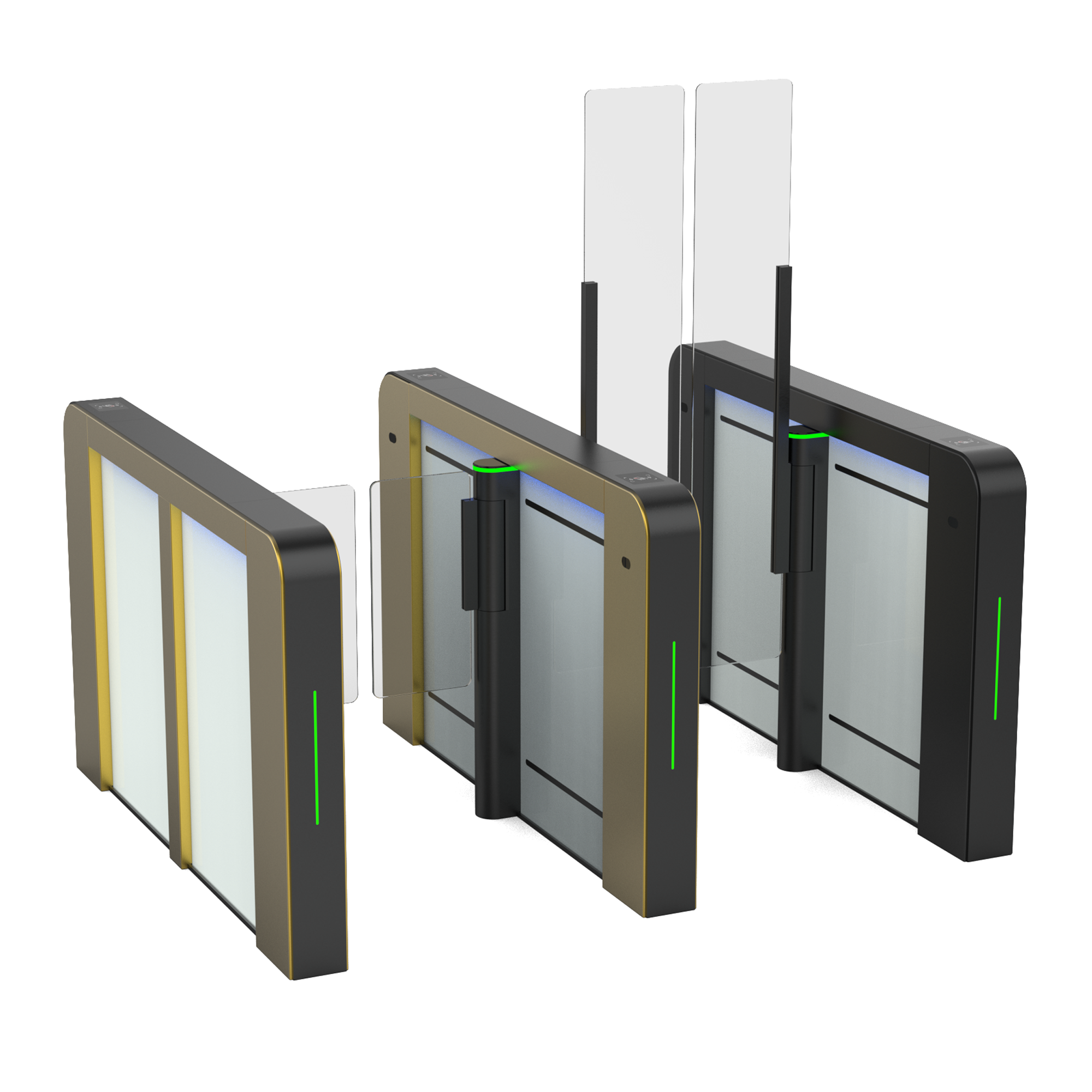

High Arm Speed Gate
Screwless Speed Gate Dimension
Applications for Speed Gate Turnstile
This new released speed gate can use at office and administrative buildings,Ministries and public buildings.Banks and financial institutions,Industrial installations, Residential areas,Schools, colleges and universities
Packing details of Speed Gate
Size: 169*34*118mm
GW: Side cabinet: 125kg
Middle cabinet: 135kg
