15年以上リストされた歩行者の回転木戸そして駐車装置製造業者!
標準的なコード:832966
| Place of Origin: | China |
|---|---|
| ブランド名: | DOOR or OEM |
| 証明: | CE / IS09001 |
| Model Number: | DR.TD6909X |
| Minimum Order Quantity: | 2 sets |
| 価格: | negotiable |
| Packaging Details: | wood carton |
| Delivery Time: | 5-7 working days |
| Payment Terms: | T/T |
| Supply Ability: | 2500 sets per month |
| Material: | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm | Suitable For: | Access Control, Entrance And Exit Control |
|---|---|---|---|
| Turnstile Material: | SUS304 Stainless | Communication Interface: | RS485 |
| Power Supply: | AC110/AC220+/-10% | Swing arm available: | 12mm thickness PC |
| Driving Motor: | DC brushless motor | Opening Signal Input:: | Dry Contact |
| Working environment: | -25℃-+70℃ | Support System: | Face Recognition,ic/id Card,fingerprint |
| Motor: | DC24V Brushless Motor | Passage Width: | 550mm |
| IP Rating: | IP24(if used outdoor, recommend to build a canopy) | Mean Cycles Between Failure: | 20 million times |
| Voltage: | AC110V/AC220V±10% 50-60Hz | Method of position: | Motor drive |
| Mtbf: | 5 Million Times | Opening Speed: | Adjustable <1S |
| Power: | Single Core 35w, dual core 60W | ||
| ハイライト: | DC brushless motor facial recognition turnstile,facial recognition turnstile with RS485,RS485 interface access control turnstile |
||
| Attribute | Value |
|---|---|
| Material | SUS304 brushed stainless steel, top cover 2.0mm, whole body 1.5mm |
| Suitable For | Access Control, Entrance And Exit Control |
| Turnstile Material | SUS304 Stainless |
| Communication Interface | RS485 |
| Power Supply | AC110/AC220+/-10% |
| Swing arm available | 12mm thickness PC |
| Driving Motor | DC brushless motor |
| Opening Signal Input | Dry Contact |
| Working environment | -25℃-+70℃ |
| Support System | Face Recognition, IC/ID Card, Fingerprint |
| Motor | DC24V Brushless Motor |
| Passage Width | 550mm |
| IP Rating | IP24 (if used outdoor, recommend to build a canopy) |
| Mean Cycles Between Failure | 20 million times |
| Voltage | AC110V/AC220V±10% 50-60Hz |
| Method of position | Motor drive |
| MTBF | 5 Million Times |
| Opening Speed | Adjustable <1S |
| Power | Single Core 35w, dual core 60W |

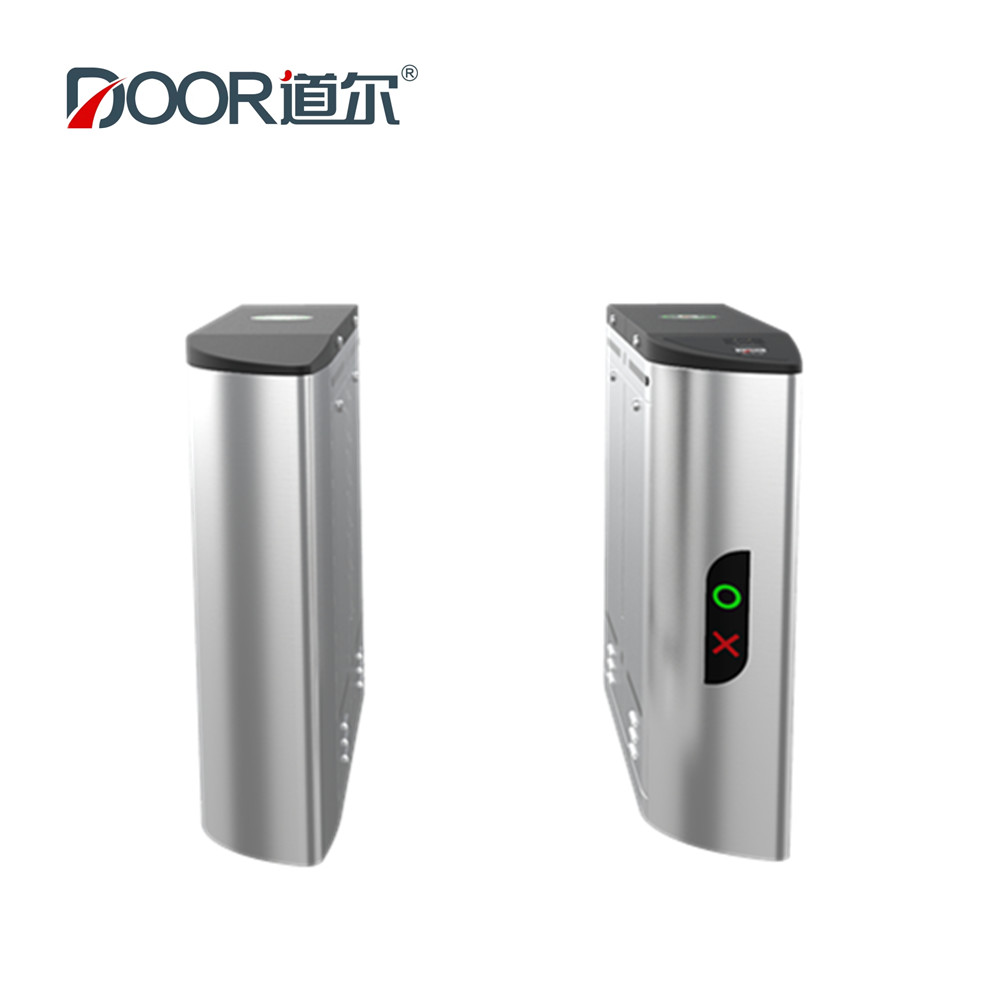

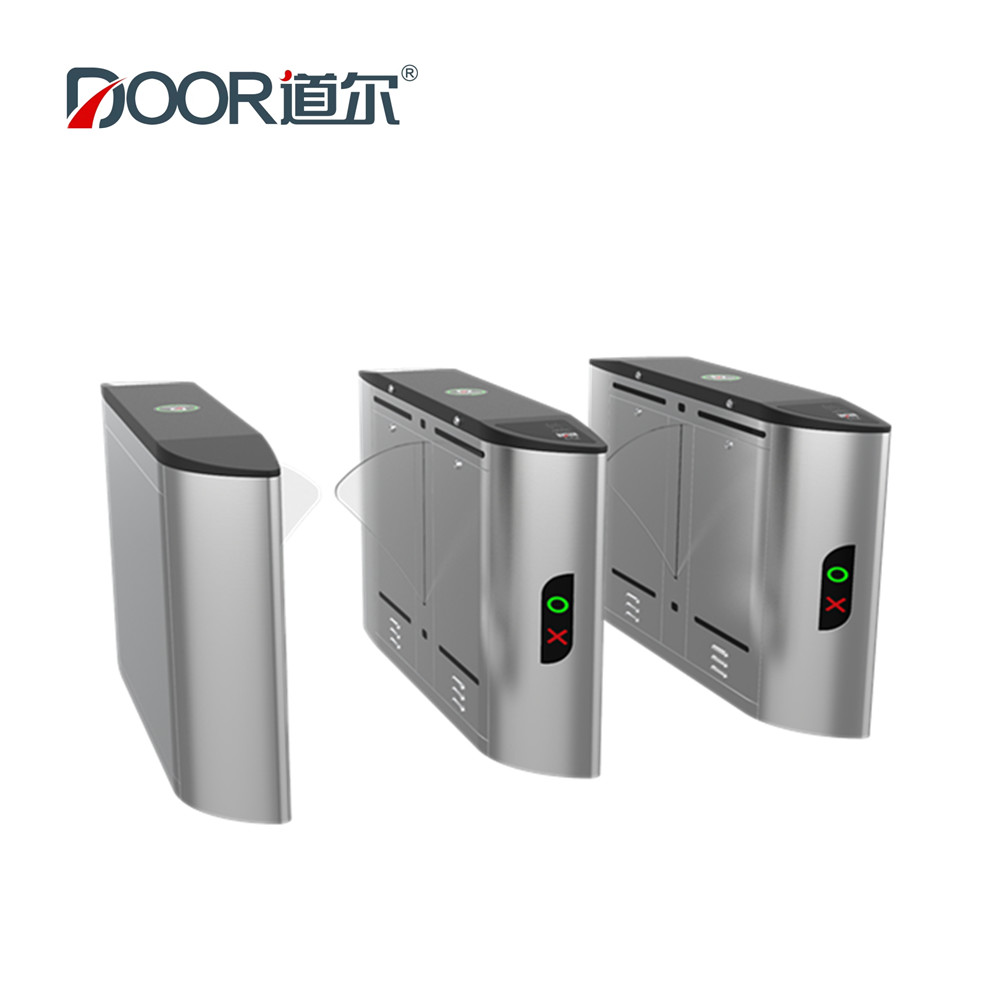

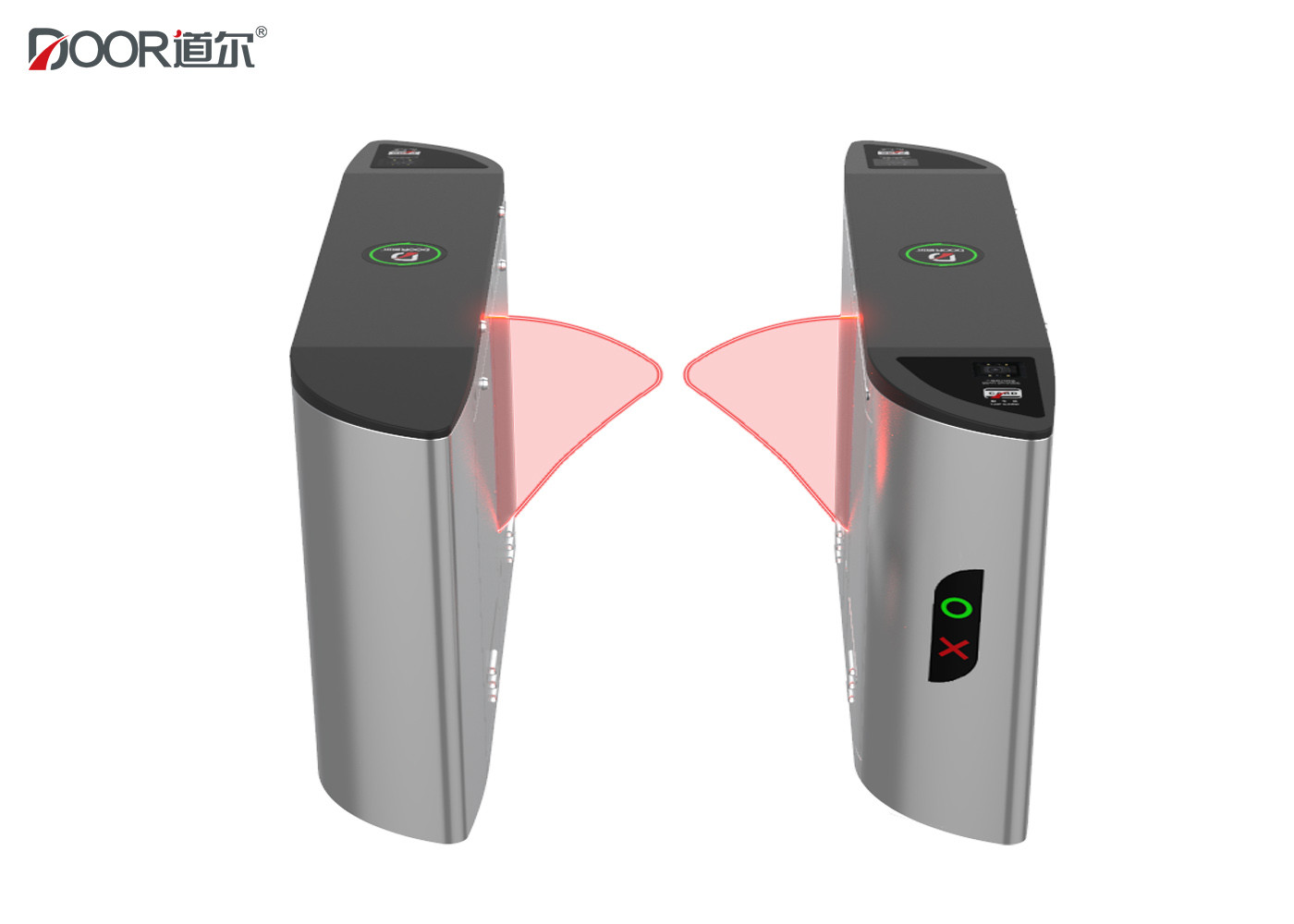

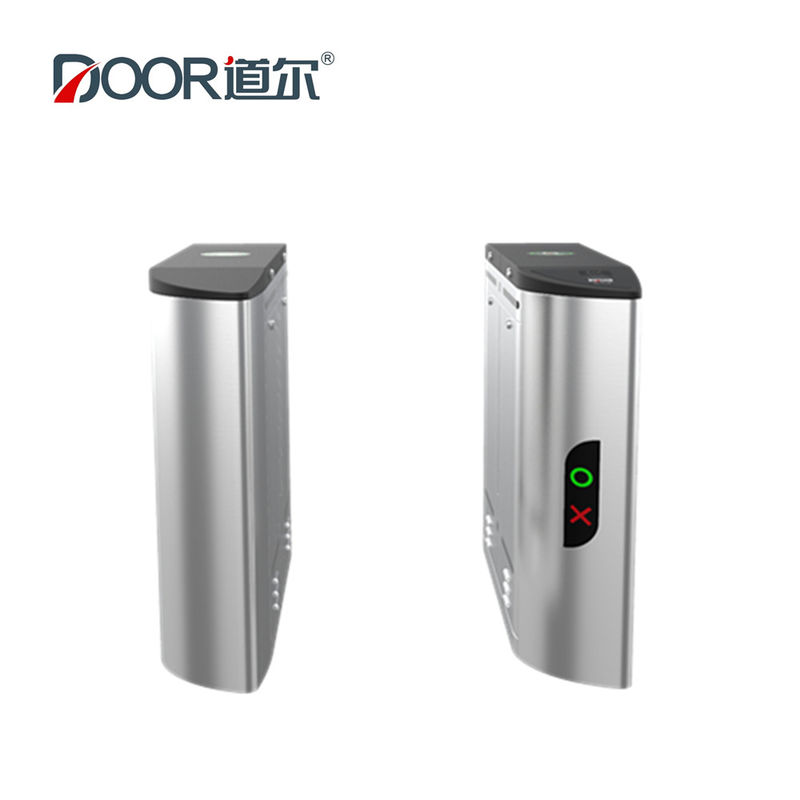

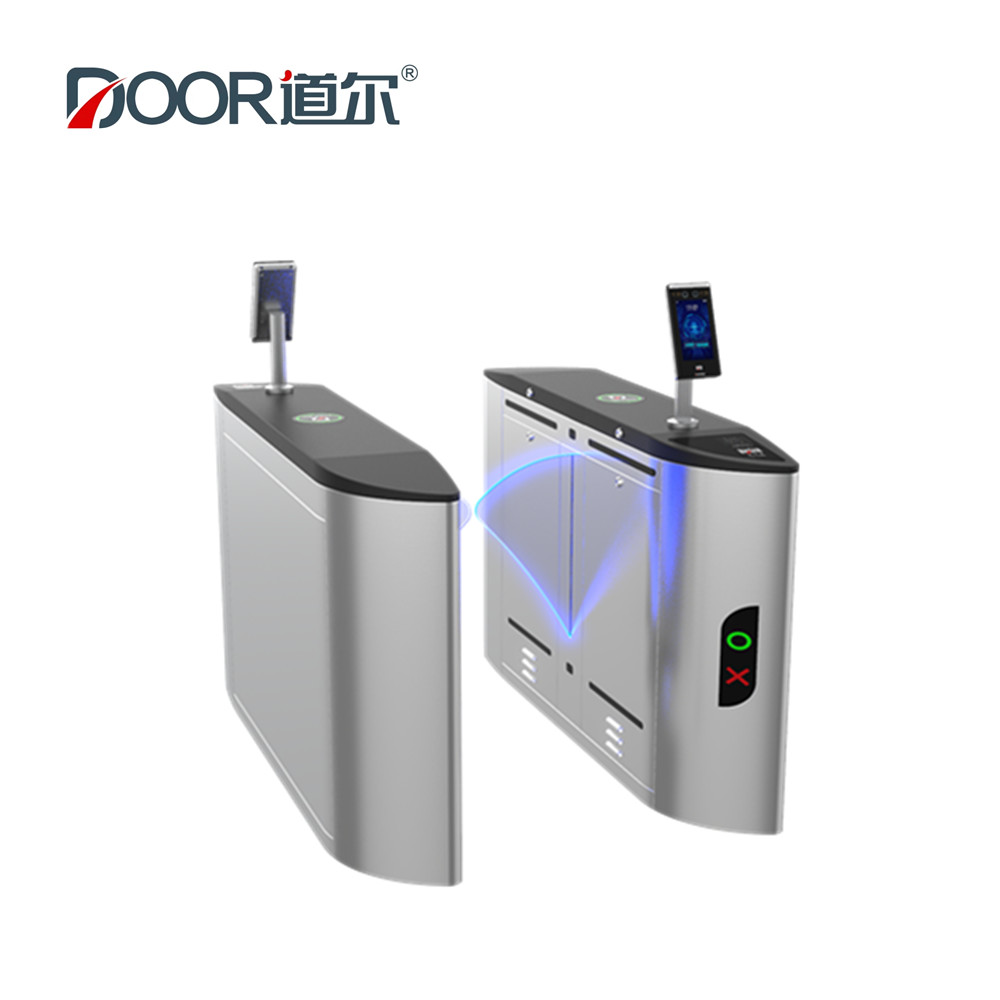

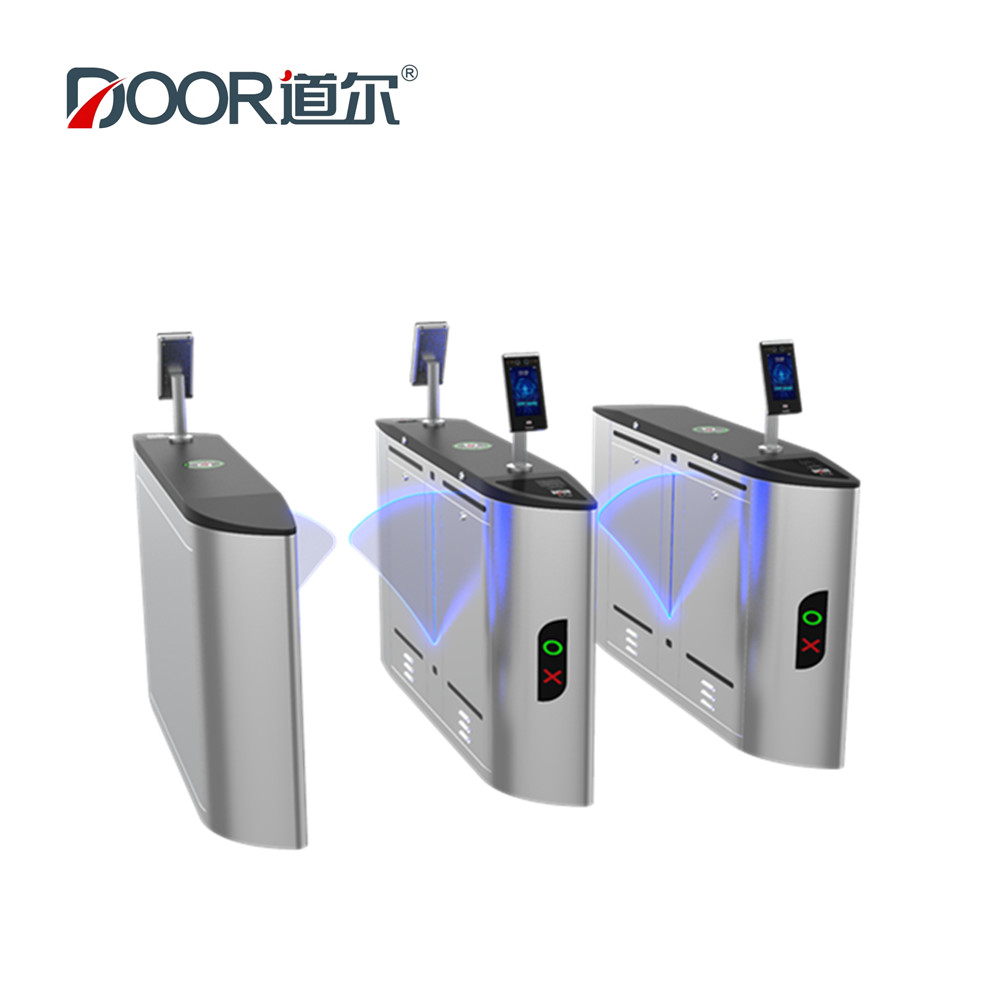

The DC Brushless Motor Automatic Retractable Flap Turnstile offers long lifespan and reliable performance for access control applications. This popular system provides fast access clearance with minimal supervision requirements.
Widely used for official or corporate buildings, sectioning off certain areas in university lab access points, industrial buildings or hospital radiology departments.
Shipping fee and delivery date to be negotiated. Contact supplier for more details.
